Why do I need special hinges for my fire door?Why are Fire Door Hinges so big and expensive?
Our Grade 13 fire door hinges are tested for up to 120kg with a 10-year guarantee.when used with a door closer (which many fire doors are), the wear and tear on the hinges is greatly increased. A rule of thumb is to add 20% for standard closers, but 75% for back-check closers. Fire door hinges are designed to take this extra weight factored in.
Specification
Grade 13
SUS 201 Material Stainless Steel
Max door load: 120kg
Suitable for doors 44-54mm thick

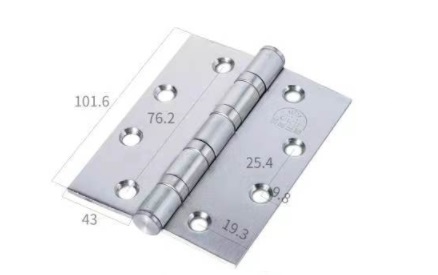

101.6 x 88.9 x 3mm
Pack of 2 hinges
Supplied With 12×1.1/2″ Pozi Drive 3/4″ Threaded Screws
Suitable for FD30, 60, 90 and 120 fire-rated timber doors
Suitable for FD240 fire-rated steel doors
Testing
CE 1121 marked
UKCA marked
Certifire CF336
BS EN1634 fire tested
BS EN1935 performance tested 200,000 cycles to Grade 13
A proper Grade 11 or Grade 13 fire door hinge has the following benefits:
Stainless steel or thick steel construction gives tremendous strength
The large hinge area and large screws give a very solid fix
The pinned and capped design prevents the pin dropping out of the hinge
You also need to fit Intumescent Hinge Pads behind the hinges to maintain the intumescent protection along the perimeter of the door. Happily, these are inexpensive and really easy to fit!
Fire door hinges are manufactured to very high standards, and offer fantastic performance for both everyday use and in a severe fire situation. They are available in many finishes, and with their 10-year guarantee they are built to last.
Fire door hinges are manufactured to very high standards and offer fantastic performance for both everyday use and in a severe fire situation. They are available in many finishes and with their 10-year guarantee they are built to last.
SUS 201 Material Stainless Steel
Max door load: 120kg
Suitable for doors 44-54mm thick
101.6 x 88.9 x 3mm
Pack of 2 hinges
